Thinking Of Widening A Garage Opening In Essex? Start Here

Quick answer: yes, widening a garage opening usually needs Building Regulations approval because it changes the structure. You may not need planning permission, but you almost always need Building Control sign-off.

This guide covers three key decisions: Building Regulations, Party Wall responsibilities, and the right structural lintel or steel. BFCC Garage Doors manages compliant installations across Essex and Suffolk. Learn more about us at BFCC Garage Doors and check where we work on our areas we service page.

When Building Regulations Apply (And When They Don’t)

Enlarging an opening alters the load path, so Part A (structure) is triggered. Other Parts may also apply: Part B (fire separation for integral garages), Part K (safety glazing/impacts), Part P (electrics for automation), and Part M (access thresholds where relevant). Like-for-like door swaps with no structural change are usually exempt.

Approval routes: Building Notice (quicker, fewer drawings) or Full Plans (detailed upfront sign-off). Expect inspections before covering works and at completion, plus a Completion Certificate. Fees vary by council and scale of work. For quick answers on process, see our faq.

Planning Permission Vs Building Regulations In Essex

Planning deals with appearance and land use; Building Regulations cover safety and structure. Widening at the front often falls under permitted development if it doesn’t materially change the street scene. Exceptions include conservation areas, Article 4 Directions, and listed buildings.

Check local rules with your district council (Colchester, Tendring, Braintree, Chelmsford, Basildon, Epping Forest, Harlow, Uttlesford, Maldon, Brentwood, Castle Point, Rochford, Southend-on-Sea, Thurrock). For related guidance, see do i need planning permission for a side door. If unsure, ask your council’s Building Control or contact us and we’ll point you in the right direction.

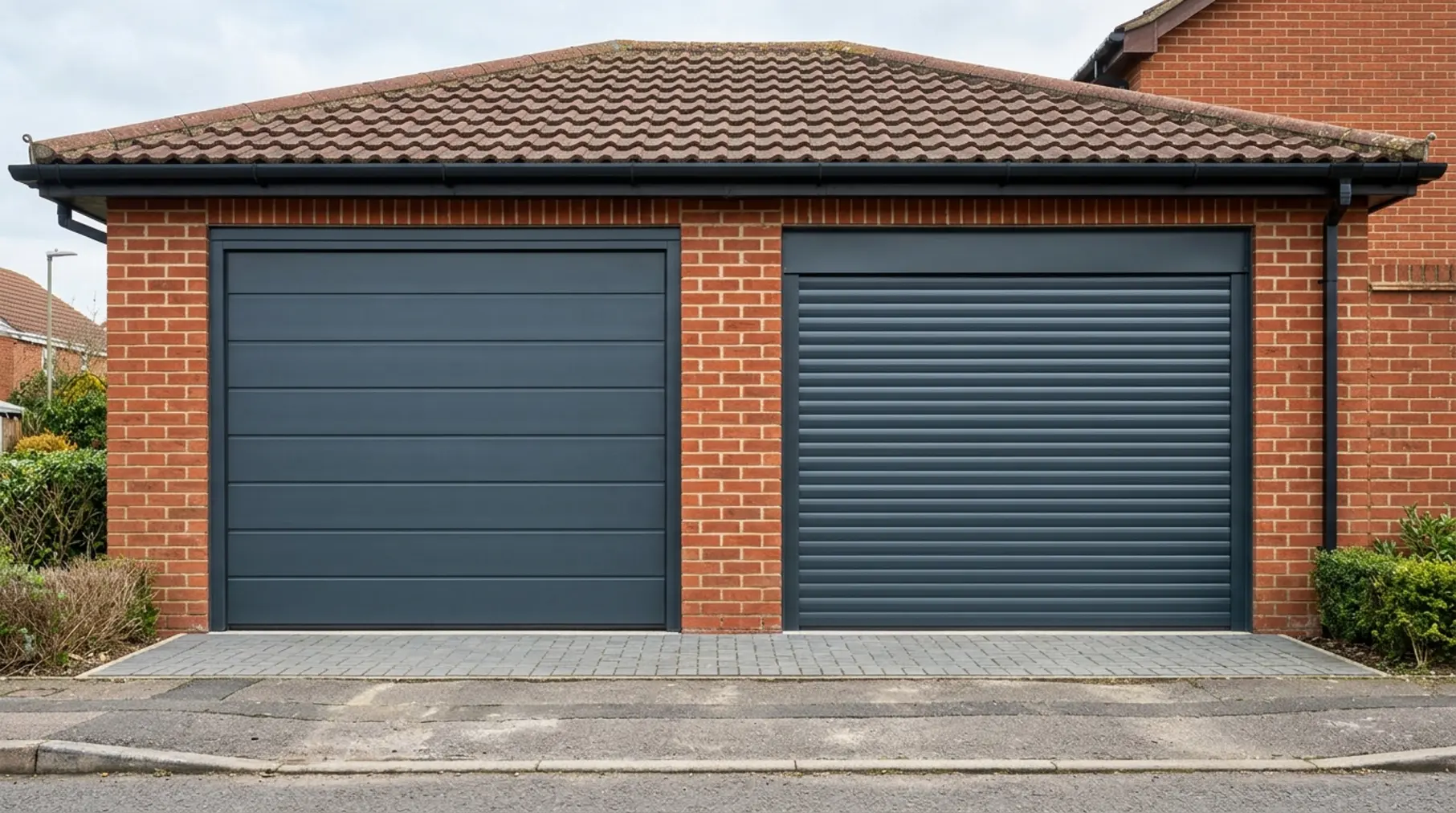

This image was generated with AI and may not always represent the product or service exactly.

Structural Lintels And Steel: Getting The Opening Right

Widening removes masonry that carries loads. A new lintel or steel beam is usually required. A structural engineer will size it and provide calculations for Building Control. Options include pre-stressed concrete, steel catnic lintels, or a bespoke RSJ/UB.

Sizing depends on span, wall type, roof loads, and bearings. Temporary propping is needed during the work, with proper padstones if specified. Headroom can be tight after fitting deeper steels, so plan the door around the structure. See our guide to awkward spaces: smart door solutions low headroom awkward openings essex.

Party Wall: When You Must Notify A Neighbour

The Party Wall etc. Act 1996 may apply if you cut into or alter a party wall, work on a boundary wall, or excavate within 3 metres of a neighbour’s foundations to a deeper level. Detached garages set away from boundaries usually avoid the Act.

Serve notice, allow 14 days for consent, and appoint surveyors if required. An award sets out how works proceed and protects both sides. Speak to neighbours early to keep things friendly and avoid delays.

Step-By-Step: How A Compliant Widening Project Runs

Plan and design: survey, measurements, door type/size, check headroom and obstructions.
Engineer and drawings: lintel/steel design, calculations, details for Building Control.
Apply: submit Building Notice or Full Plans; issue Party Wall notices if needed.
Prepare: order the door, book dates, arrange safe temporary supports and lintel install.
Inspect: pre-cover inspection of structure; make any tweaks requested by the inspector.
Fit: install door and automation; test safety edges and force limits.
Sign off: final inspection, Completion Certificate, warranties and handover.

Typical timings: engineer calcs 1–2 weeks, council notice a few days, door lead times 3–8 weeks depending on spec. Photograph stages for your records.

Choosing The Right Door For A Wider Opening

Sectional doors suit large spans, seal well, and work with low headroom kits. Roller doors lift vertically and keep the ceiling clear, so they are ideal where depth is tight. Up and Over remains a cost-effective option for standard sizes. Side hinged is simple and gives easy pedestrian access.

Think about automation, safety edges, and manual override for power cuts. If your garage is part of the home, choose insulated panels and good perimeter seals. Explore options on our sectional garage doors page or ask us for a comparison during a survey.

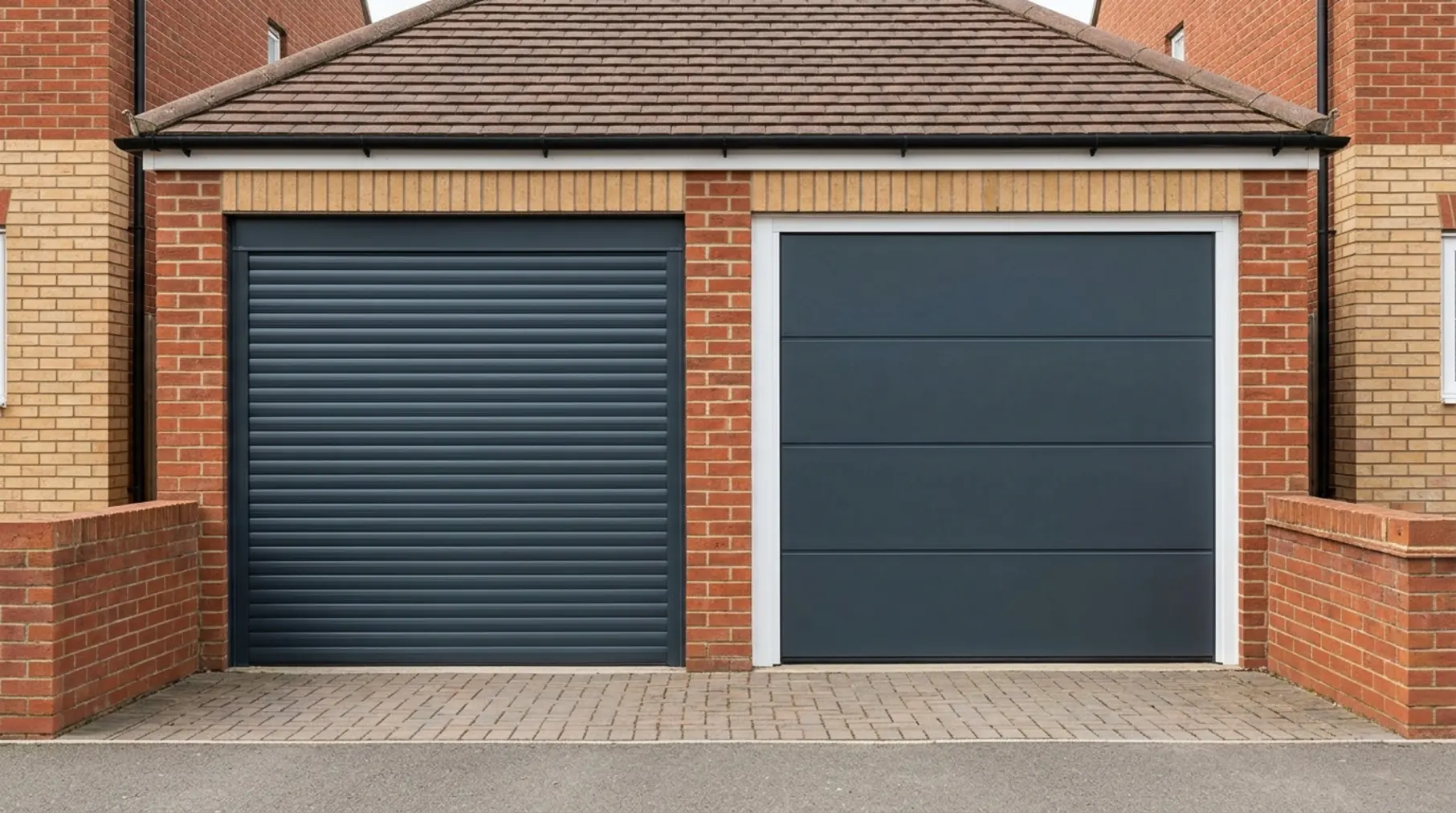

This image was generated with AI and may not always represent the product or service exactly.

Security, Safety And Everyday Practicalities

Security matters more with a wider opening. Go for robust locking, quality motors with rolling-code remotes, and reinforced guides/endplates on roller doors. Consider smart access for convenience and audit trails.

Safety should be built-in: CE/UKCA-compliant automation, obstacle detection, and safety glazing where required. For integral garages, keep the fire separation intact. Comfort upgrades include insulated panels, draught seals, bright lighting, and durable flooring such as heavy-duty tiles that handle vehicle loads.

Costs, Timescales And What To Expect

Typical cost components: structural engineer and calculations, lintel/steel and building works, the door and automation, Building Control fees, plus optional upgrades (insulation, finishes, smart access). Final price depends on span, wall type, and site conditions.

Lead times for made-to-measure doors are often 3–8 weeks. Building Control usually accepts a Building Notice within a few days. BFCC Garage Doors provides product warranties and clear aftercare, with service support available if you ever need adjustments.

Common Pitfalls We See—And How BFCC Prevents Them

Low headroom after fitting a deeper lintel can clash with tracks or motors. We check clearances and specify the right door geometry early. Hidden services in walls, weak masonry, or shallow foundations need careful planning and, sometimes, a revised detail.

We also prevent damp at thresholds with correct sealing and sills, and we create solid fixing grounds for long-term stability. Our surveys and coordination with your builder and engineer cut out rework and delays.

Why Homeowners In Essex & Suffolk Choose BFCC

We’re local specialists with years of fitting experience across Essex and Suffolk. Our teams are manufacturer-trained, punctual, and tidy. We recommend proven brands and tailor designs to your home and budget, including bespoke colours and finishes.

Visit us to discuss lintel and headroom solutions, see working displays, and compare options side by side. Ready to get started? Arrange a survey and quote with BFCC Garage Doors today, and we’ll guide you through approvals and a secure, neat finish.

FAQs

Do I Always Need Building Regulations To Widen My Garage Opening?

Almost always, because widening affects the structure. Building Control approval and inspections are required, ending with a Completion Certificate.

How Long Does Approval And Sign-Off Usually Take?

A Building Notice can be accepted in a few days. Final sign-off comes after inspections, typically aligned with your lintel and door installation dates.
