EV‑Ready Garages: What It Means For Essex & Suffolk Homes

With more EVs on Essex and Suffolk driveways, a garage now needs to park the car and support daily charging. That means the right door movement, enough headroom, and neat, safe cable routes. Get these right and charging is simple, quiet and secure.

This guide sets out a practical checklist on door types, measurements, safety edges, ventilation and cable routing. BFCC Garage Doors offers local surveys, quality installations and dependable aftercare. See working displays at our showroom, check the areas we service, and plan next steps with our team.

Measure Once, Charge Safely: Openings, Headroom And Driveways

Accurate measurements ensure your door, opener and charging setup work together. Different door types change the usable opening and the ceiling space available for cables and lighting.

Clear opening width and height (reveal to reveal, floor to lintel)
Internal headroom (lintel to ceiling)
Backroom (depth to rear wall or obstruction)
Sideroom (track clearance and charger position)
Drive length and slope (check door travel against a parked EV)

Typical allowances (check the specific manufacturer):

Roller doors: allow space for the roll (often 205–300 mm above the opening)
Sectional doors: consistent headroom (commonly 200–300 mm), plus backroom of door height plus 300–1,000 mm
Sideroom: usually 90–120 mm each side for tracks and sealing

Short or narrow drives need extra care so a door’s travel never meets a bumper or a trailing cable. If it’s tight, book a free survey. If widening helps, read our guide on widening a garage opening.

Door Types For EV‑Friendly Garages: Pros And Cons

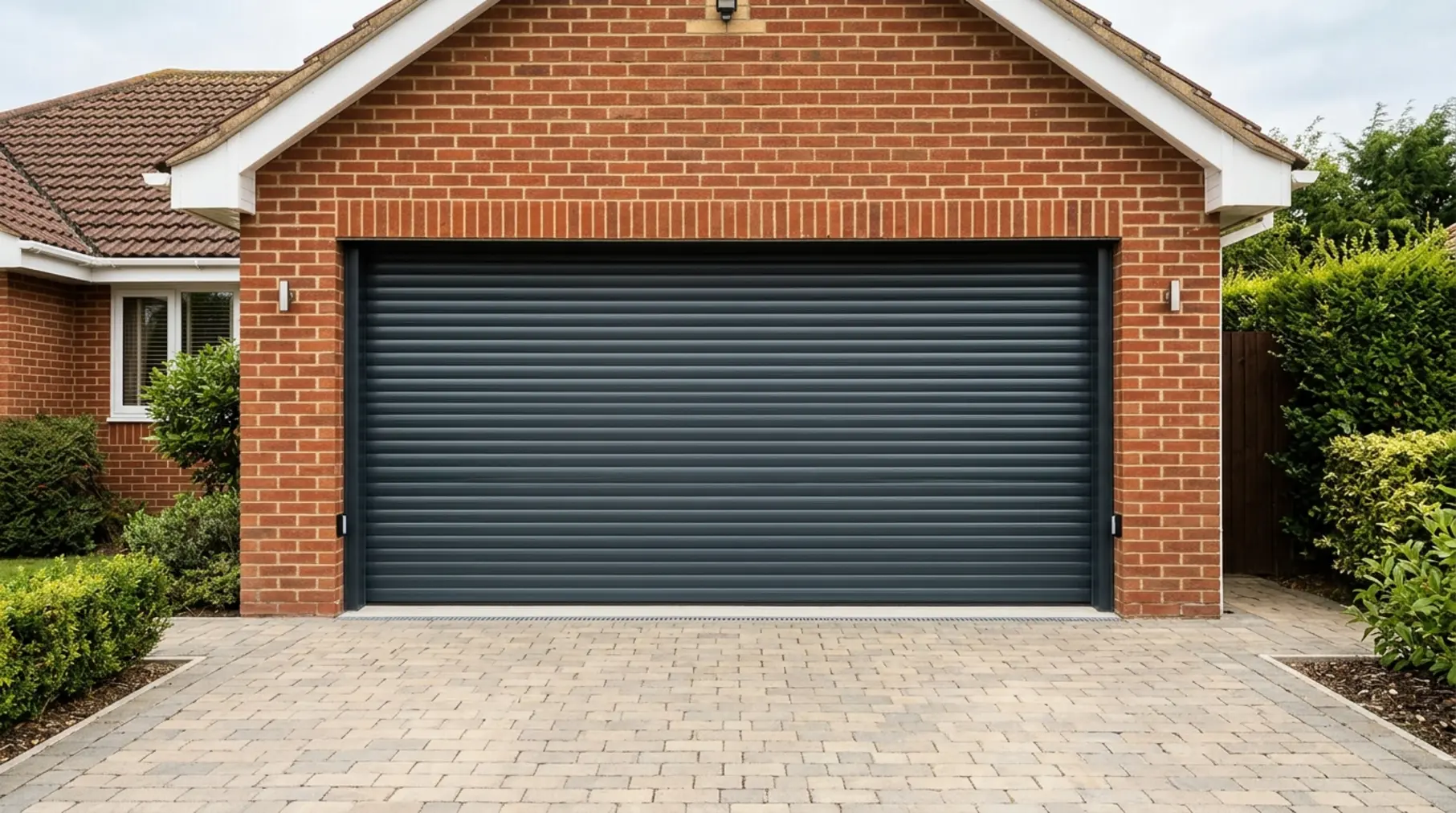

Roller doors lift straight up into a compact roll, keeping the ceiling largely clear for cable trays and lighting. They suit short drives and awkward openings, and modern versions are quiet and secure. Allow enough headroom for the roll and choose a quality, responsive bottom safety edge.

Sectional doors rise vertically in tracks to give a wide, well‑sealed opening with strong insulation. They need consistent headroom, but the smooth travel works well with automation and tight weather seals. Low‑headroom kits are available where space is limited.

Up & over and side‑hinged doors offer quick walk‑in access, useful when charging, but check swing paths against the EV and any cable. Side‑hinged doors avoid ceiling tracks and can be insulated; up & over doors need clear driveway space for the panel sweep.

This image was generated with AI and may not always represent the product or service exactly.

Automation Built For Charging: Openers, Safety Edges And Smart Control

Choose an opener and safety devices that protect people, pets and cables. Look for UKCA‑marked systems set up to BS EN 12453 (safety in use of power‑operated doors).

Auto‑reverse on contact and aligned photocell beams
For roller doors: responsive bottom safety edge and anti‑drop protection
Soft‑start/stop, quiet motors and manual release for power cuts
Battery back‑up to finish a cycle if mains power fails
Keypads, remotes and smart app control (timers, geofencing, status alerts)

Test safety features regularly and book routine servicing. Explore options on our automatic garage doors page.

Charging‑Ready Electrics And Cable Routing (Use A Qualified Electrician)

Decide whether the charger sits outside near the garage front, or inside for a hidden cable. Keep every cable path away from door tracks, rollers and hinge lines.

High wall routes or overhead trays keep cables clear of moving parts
Floor routes need rated covers or ducts to avoid trip or crush risks
Use tidy cable hooks and a holster to park the plug
Specify suitable IP‑rated equipment for outdoor positions

All EV work must be completed by a qualified electrician to the 18th Edition of the IET Wiring Regulations (BS 7671) and the charger manufacturer’s guidance. Expect RCD protection and surge protection as required. Set good LED task lighting, choose tough non‑slip floors, label sockets, and keep clear access to controls and isolators.

Ventilation, Insulation And Condensation Control

Allow background airflow without big draughts. Trickle vents or discreet louvres bring fresh air while quality perimeter seals keep out weather. This balance reduces damp and odours and makes plug‑in time more comfortable.

Insulated sectional doors or quality insulated roller doors cut cold spots and help prevent condensation around electrics and tools. In garages with laundry appliances, consider a small dehumidifier. See seasonal tips in our guide to winter garage comfort and draught‑proofing.

Security When The Cable’s Out: Locks, Anti‑Lift And Placement

Choose doors with robust locks and anti‑lift hardware. Where available, look for Secured by Design options. BFCC Garage Doors can also upgrade older doors with better locking and reinforcement kits.

Keep cables out of sight when not in use and place chargers on a less visible side wall or inside the garage. Add PIR lighting and simple camera coverage. For standards and hardware choices, see our explainer on security standards, locks, anti‑lift and UKCA/SBD.

This image was generated with AI and may not always represent the product or service exactly.

Conservation Areas, Planning And Listed Buildings

Period homes in Essex and Suffolk often suit timber‑effect or true timber sectional and side‑hinged doors. Choose classic designs, muted colours and neat framing to sit well on heritage streets. Use discreet, low‑profile external chargers or place them inside where practical.

Planning, listed consent or building regs may apply when altering openings, changing door styles or adding side doors and power. Wall‑mounted EV chargepoints are usually permitted development in England, but restrictions apply in conservation areas and for listed buildings. BFCC Garage Doors can survey, advise on permissions, and show photos of similar local installs.

Real‑World Layouts: Three EV‑Ready Garage Plans

Narrow terrace drive in Colchester or Ipswich: pick a compact roller or low‑headroom sectional. Mount the charger on an internal side wall and route the cable high to avoid tracks. Check the door’s opening path against the parked car.

Double garage in Chelmsford or Bury St Edmunds: twin insulated sectionals with a centre post can hide tidy cable routes. Fit a charger on each side for simple access. For more on space trade‑offs, read roller vs sectional on narrow driveways.

Rural barn or outbuilding: side‑hinged doors give easy walk‑in access and low maintenance. Keep the charger inside, out of view, with hooks and covers to protect cables from farm traffic.

Installation, Aftercare And Warranties

Expect a quick on‑site survey, made‑to‑measure options and a clean, careful fit. We set travel limits, test safety features and show you how to use everything. You get dependable hardware from trusted brands and clear paperwork for warranties.

Annual servicing keeps sensors, balances and seals working safely, which matters when charging gear is close by. BFCC Garage Doors also offers fast local repairs and sensible upgrades such as new openers, enhanced safety edges and better draught seals.

Budgeting Your EV‑Ready Garage

Spend first on what lasts: a quality door, a reliable motor with safety features, good insulation and tight seals. Add smart controls, storage and lighting next. This order delivers daily benefits and long‑term value.

Typical 2026 prices vary by width, height, finish, insulation and automation. Many homes phase upgrades: start with a new motor and seals, then replace the door later. For a clear local view on costs and options, the BFCC Garage Doors team can survey and quote.

See It Working: Visit Our Showroom And Book A Survey

Try quiet motors, feel door weights and see safety edges in action at the BFCC Garage Doors display space. Bring rough measurements and a few photos, plus your charging plan. We will suggest the right door type, opener and cable routing.

We offer fast local appointments, tidy installs and support across Essex and Suffolk. Explore displays at our showroom and check the areas we service. Our gallery and products pages show what’s possible for your home.

FAQs

Do I Need To Replace My Door To Add A Charger?

Not always. Many garages only need improved safety features and tidy cable routing. A survey will confirm if your current door and opener are suitable.

Which Door Type Gives The Widest Usable Opening?

Sectional doors usually offer the largest clear opening for a given size. Roller doors are close, especially on tight driveways where vertical lift helps.
